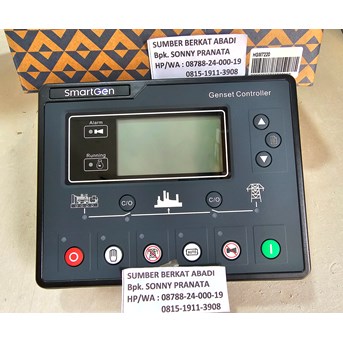

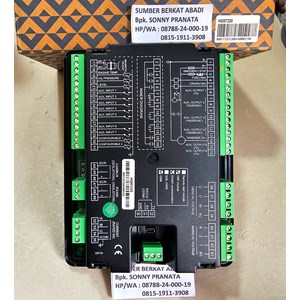

SMARTGEN HGM 720 HGM720 HGM-720 HGM7220 HGM-7220 HGM 7220 - GENUINE

SMARTGEN HGM 720 HGM720 HGM-720 HGM7220 HGM-7220 HGM 7220 - GENERATOR CONTROLLER MODULE - GENUINE

Brand = SMARTGEN
Part Number = HGM 720 : HGM 7220 (Same Product 100%)
Description = Generator Controller Module (Event logs, RS485, SMS, schedule control & AMF)
Power Supply = 8 - 35 VDC
Case Dimensions = 197 x 152 x 47 mm
Panel Cutout = 186 x 141 mm
Operating Temperature = -25 to +70 Celcius

HGM7200/7100A series genset controllers are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.
HGM7200/7100A controller adopts 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The majority of parameters can be set using front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 ports. It can be widely used in a number of automatic genset control system with compact structure, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS :
HGM7X10, Auto Start Module, controls genset to start or stop automatically by remote start signal
HGM7X20, Auto Main Failure, updates based on HGM7X10, especially for automatic system composed by generator and mains

Generator
